Mansard Roof Design: Maximizing Space with a Classic Roof Form
Mansard roof design is a distinctive architectural solution that combines elegance with practicality. Recognized by its dual-slope profile on all sides, the mansard roof has been used for centuries to create additional usable space within buildings—particularly at roof level—while maintaining a refined exterior appearance.
Today, mansard roofs are used in both traditional and contemporary architecture, valued for their ability to increase floor area, adapt to planning constraints, and create strong visual identity.
We have completed hundreds of civil and structural design spreadsheets, including all aspects of structural timber design. Follow the link for further details and offers.

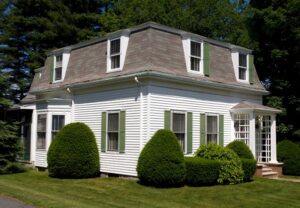

What Is a Mansard Roof?
A mansard roof is a four-sided roof with two slopes on each side:
- A steep lower slope, often nearly vertical
- A shallower upper slope, sometimes barely visible from street level
This configuration allows the roof space to function almost like a full additional storey rather than a conventional attic.
Why Choose a Mansard Roof?
Mansard roof design offers several key advantages:
- Maximum usable internal space within the roof
- Improved headroom compared to pitched roofs
- Architectural flexibility, suitable for extensions and retrofits
- Strong urban presence, especially in dense settings
- Compatibility with dormer windows for light and ventilation
These benefits make mansard roofs particularly popular in residential and mixed-use buildings.

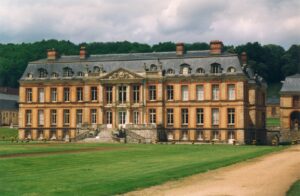

Historical Background
The mansard roof takes its name from French architect François Mansart and became widely used in 17th-century France. It later became a defining feature of Haussmann-era Parisian buildings, where it allowed additional floors to be added without increasing overall building height.
This historical context still influences modern planning policies, especially in urban environments.
Structural Design of Mansard Roofs
Framing Systems
Mansard roofs can be framed using:
- Traditional timber rafters and purlins
- Engineered timber such as LVL or glulam
- Hybrid systems combining timber and steel
The steep lower slope typically requires closer rafter spacing and careful connection detailing.
Load Paths
Loads from the roof covering, snow, and wind are transferred:
- Through the upper roof slopes
- Into the steep lower rafters
- Down into supporting walls or frames
Because of the geometry, mansard roofs experience higher wind pressures on the lower slopes, which must be considered in design.
Interior Space and Layout
One of the defining features of mansard roof design is the quality of interior space it creates. Common uses include:
- Bedrooms and bathrooms
- Home offices or studios
- Apartments in urban buildings
The steep lower slope allows near-vertical walls internally, making the space feel more like a standard floor than an attic.
Dormers and Openings
Dormer windows are commonly integrated into mansard roofs to provide:
- Natural daylight
- Ventilation
- Views and architectural rhythm
Dormer design must be carefully coordinated with structural framing and waterproofing details.
Materials and Finishes
Mansard roofs are traditionally clad in materials such as:
- Slate
- Zinc or lead sheet
- Shingles
Modern mansard roofs may also use standing-seam metal or composite cladding systems. Material choice strongly influences durability, weight, and appearance.
Waterproofing and Detailing
Because of the shallow upper slope and complex junctions, waterproofing is critical:
- Continuous membranes and underlays
- Well-detailed valleys and flashings
- Careful integration of dormers and parapets
Good detailing is essential to prevent long-term moisture issues.
Planning and Regulatory Considerations
Mansard roof design is often favored in planning contexts where:
- Building height is restricted
- Additional floor area is desired
- Consistency with neighboring buildings is required
However, local regulations may control roof angle, materials, and dormer proportions.
Advantages and Limitations
Advantages
- Excellent space efficiency
- Strong architectural character
- Ideal for roof extensions and conversions
- Flexible interior layouts
Limitations
- More complex construction
- Higher cost than simple pitched roofs
- Increased detailing requirements
Understanding these trade-offs is key to successful design.
Modern Mansard Roof Design
Contemporary mansard roofs reinterpret the classic form using:
- Clean, minimal detailing
- Modern materials such as zinc or aluminum
- Simplified dormer geometry
This approach allows mansard roofs to feel both timeless and current.
Final Thoughts
Mansard roof design is a powerful tool for architects and designers seeking to maximize usable space while maintaining architectural elegance. With careful structural design, thoughtful detailing, and appropriate material selection, a mansard roof can transform a building—adding value, functionality, and a distinctive silhouette that endures over time.
