Timber Wall Design

What Is Timber Wall Design?

Timber wall design involves the analysis and detailing of wood-based wall systems to safely resist:

• Vertical loads from floors and roofs
• Lateral loads from wind and seismic forces
• Serviceability demands such as deflection and vibration

Depending on the system, timber walls may act as:

• Load-bearing elements
• Shear walls
• Diaphragms
• Architectural or enclosure systems

Common Types of Timber Wall Systems

Light Wood Frame Walls

Light wood frame walls use closely spaced studs, plates, and sheathing. They are widely used in residential and low-rise commercial buildings due to their economy and flexibility.

Key design considerations include:

• Stud sizing and spacing
• Axial load and buckling checks
• Shear wall capacity based on sheathing and fasteners

Post-and-Beam Infill Walls

In post-and-beam or timber frame structures, walls may be non-load-bearing infill panels. While not primary gravity elements, these walls often contribute to:

• Lateral resistance
• Thermal and acoustic performance
• Architectural rhythm

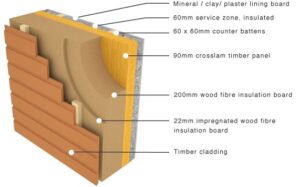

Mass Timber Walls

Mass timber wall systems use large engineered panels such as CLT or laminated timber assemblies. These walls can resist significant vertical and lateral loads and are commonly used in mid-rise and commercial buildings.

Mass timber walls offer:

• High load capacity
• Prefabrication and rapid installation
• Exposed wood finishes

Structural Design Considerations

Gravity Load Resistance

Timber walls must be checked for:

• Axial compression
• Combined axial and bending effects
• Bearing stresses at supports

Slenderness and stability often govern wall design, especially for taller timber panels.

Lateral Load Resistance

Timber walls frequently serve as shear walls, resisting wind and seismic forces. Design must account for:

• Sheathing type and thickness
• Fastener spacing and edge distances
• Hold-downs and anchorage to foundations

In mass timber systems, connections often control lateral capacity.

Serviceability and Movement

Timber walls experience:

• Deflection under load
• Long-term creep
• Moisture-related expansion and contraction

Design must accommodate movement without compromising finishes or structural integrity.

Fire and Acoustic Performance

Fire Resistance

Timber wall design may incorporate:

• Char-rate calculations for exposed mass timber
• Gypsum encapsulation for light wood framing
• Fire-resistance ratings required by code

Large timber elements perform predictably in fire when properly detailed.

Acoustics

Additional layers, insulation, and resilient connections are often used to meet sound transmission requirements, particularly in multi-family or mixed-use buildings.

Sustainability and Efficiency

Timber wall systems contribute to sustainable construction by:

• Using renewable materials
• Reducing embodied carbon
• Enabling off-site prefabrication
• Minimizing construction waste

Exposed timber walls can also reduce the need for additional interior finishes.

When Timber Wall Design Excels

Timber wall systems are especially effective for:

• Residential and mixed-use buildings
• Schools and institutional facilities
• Commercial spaces seeking warmth and biophilic design
• Projects prioritizing speed of construction and sustainability

With proper engineering, timber walls can meet demanding structural and performance requirements.

Final Thoughts

Timber wall design is where structure, enclosure, and architecture converge. Whether using light wood framing or advanced mass timber panels, well-designed timber walls provide strength, resilience, and timeless visual appeal. As timber construction continues to advance, timber wall design will remain a central element in creating efficient, sustainable, and inspiring buildings.
