Pervious Pavement Detail

Pervious pavement detail is a critical component of SuDS design, ensuring that infiltration, structural performance, and long‑term maintenance are all accounted for in a single, well‑coordinated construction section. This guide breaks down the anatomy of a pervious pavement system, the key design parameters, and the construction details that ensure long‑term functionality.

The CivilWeb Permeable Pavement Design Spreadsheet can save hours of repetitive calculations while ensuring compliance with CIRIA C753 SUDS Manual, reliable accuracy and even optimization tools which can save money on materials during the construction phase.

🌧️ What “Pervious Pavement Detail” Really Means

A pervious pavement detail refers to the cross‑sectional design of a permeable or porous pavement system, showing:
- Surface layer
- Bedding or choker layer
- Reservoir/sub‑base
- Geotextiles or geogrids
- Underdrains (if required)
- Subgrade preparation

This detail is used for planning submissions, contractor guidance, and long‑term maintenance planning.

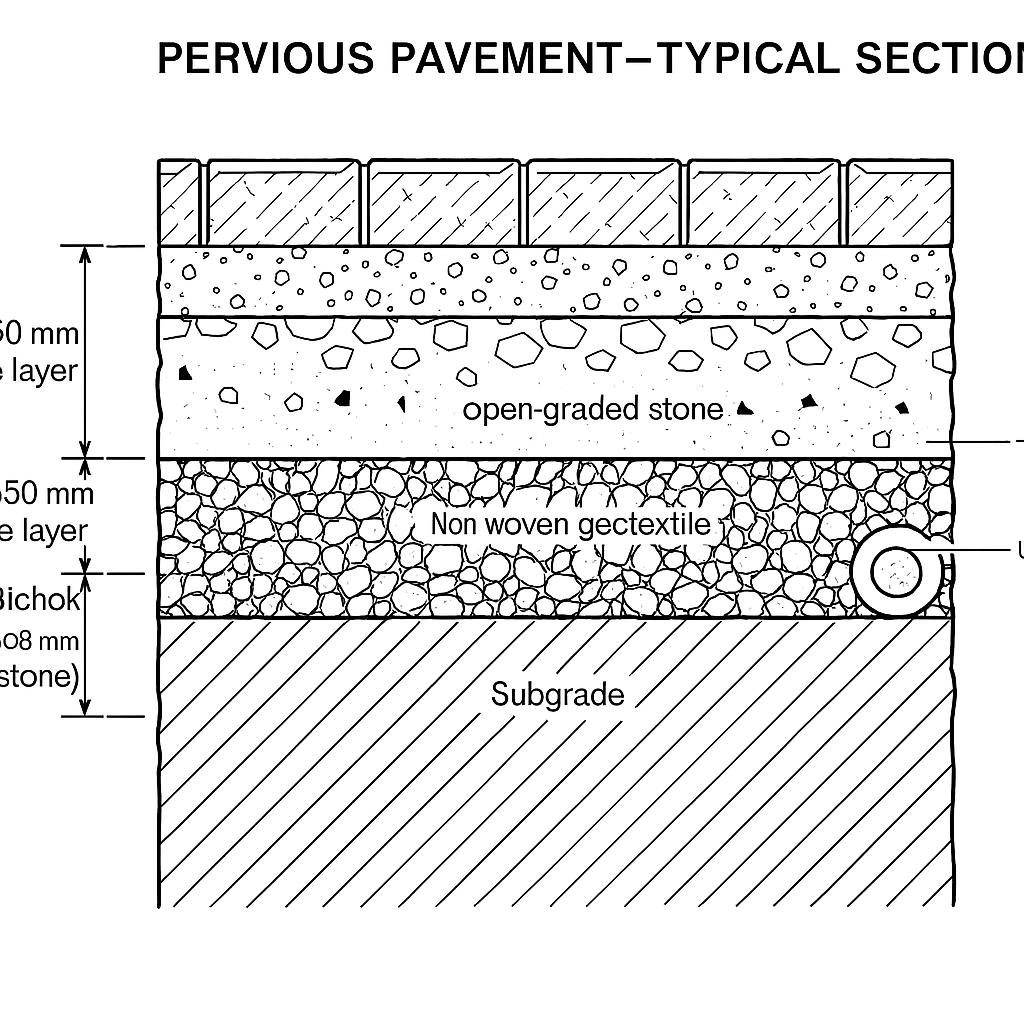

🧱 Typical Pervious Pavement Construction Detail

Below is a generalised structure used across UK SuDS projects:

Layer	Purpose	Typical Material	Notes
Pervious surface layer	Allows infiltration	Porous asphalt, pervious concrete, permeable blocks	Must remain unclogged; maintenance essential
Bedding/choker layer	Levels surface & promotes infiltration	2–6 mm clean stone	Not used in all systems (e.g., porous asphalt)
Reservoir/sub‑base	Stores water & provides structural support	20–63 mm open‑graded stone	Void ratio typically 30–40%
Geotextile (optional)	Separation & filtration	Non‑woven geotextile	Prevents fines migration
Underdrain (if needed)	Provides controlled discharge	Perforated pipe	Used where infiltration is limited
Subgrade	Supports system & infiltrates water	Prepared soil	Must be uncompacted for infiltration systems

This aligns with common SuDS guidance and industry practice, including the SuDS Manual, which emphasises source‑control benefits and long‑term maintenance considerations.

📐 Key Design Considerations for Pervious Pavement Details

1. Infiltration vs. Partial‑Infiltration vs. No‑Infiltration

- Full infiltration: Best for permeable soils; no underdrain required.
- Partial infiltration: Underdrain included; reduces risk on clay soils.
- No infiltration: Acts as attenuation only; used where contamination or groundwater constraints exist.

2. Structural Requirements

Pervious pavements must support traffic loads while maintaining void space. Open‑graded stone provides both storage and structural capacity, but thickness must be sized based on expected loading.

3. Hydraulic Storage

The reservoir layer must be sized to store the design storm. Void ratios of 30–40% are typical for open‑graded stone, allowing significant temporary storage.

4. Surface Material Selection

- Permeable block paving is widely used in the UK and considered a key SuDS technology for source control.
- Porous asphalt is suitable for larger trafficked areas but requires specialist installation.
- Pervious concrete offers high infiltration but requires careful mix design.

5. Edge Restraints and Detailing

Proper edge restraint prevents lateral movement of blocks or gravel. Kerbs or concrete haunching are commonly used.

⚠️ Common Detailing Mistakes and How to Avoid Them

Clogging at the Surface

Sediment accumulation reduces infiltration.
Solution: Include pre‑treatment strips, specify sweeping, and avoid fine materials during construction.

Incorrect Sub‑base Material

Using MOT Type 1 instead of open‑graded stone eliminates void space.
Solution: Specify 4/20, 10/63, or similar clean, angular aggregates.

Over‑compaction of Subgrade

Compaction reduces infiltration capacity.
Solution: Light compaction only; avoid heavy rollers.

Poorly Designed Underdrains

Underdrains must be correctly positioned and wrapped in geotextile to prevent clogging.
Solution: Follow typical SuDS chamber and pipe detailing guidance, such as those used in UK inspection chamber standards.

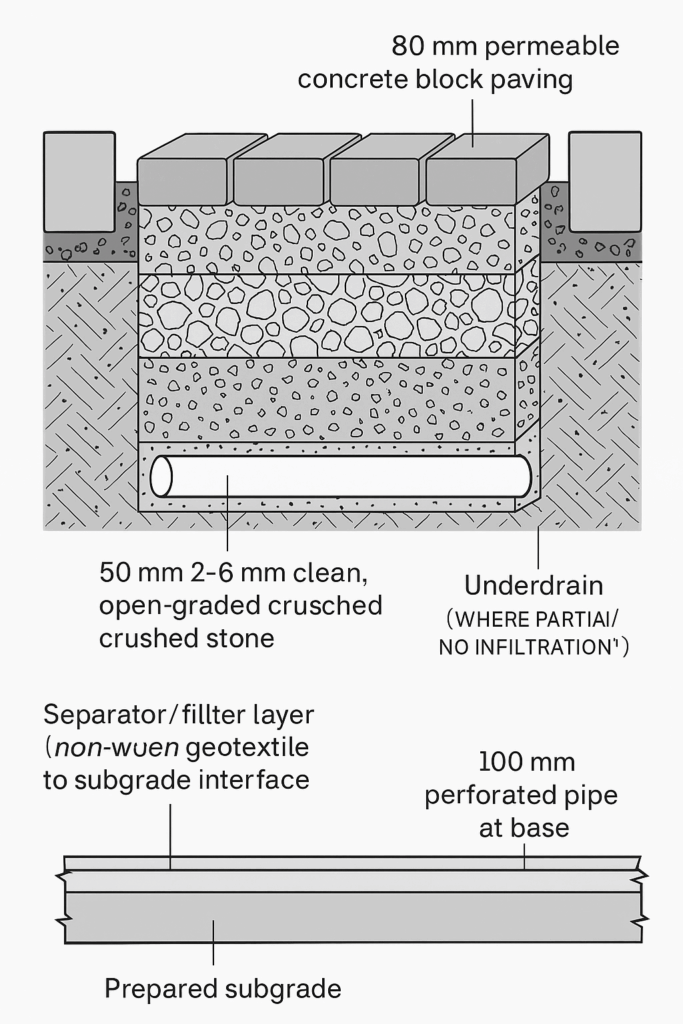

🛠️ Example Pervious Pavement Detail

Surface: 80 mm permeable block paving
Bedding layer: 50 mm 2–6 mm clean stone
Reservoir layer: 350 mm 20–63 mm open‑graded stone (void ratio 35%)
Geotextile: Non‑woven, separating subgrade from reservoir
Underdrain: 100 mm perforated pipe at base (optional)
Subgrade: Prepared soil, lightly compacted, infiltration tested

The CivilWeb Permeable Pavement Design Spreadsheet can be used to complete all the required calculations in accordance with CIRIA C753 SUDS Manual.

🏁 Final Thoughts

A well‑designed pervious pavement detail is the foundation of a successful SuDS installation. By combining the right materials, correct layer thicknesses, and proper infiltration strategy, you can deliver a system that performs hydraulically, structurally, and aesthetically for decades.
